Ref.: 986319 10

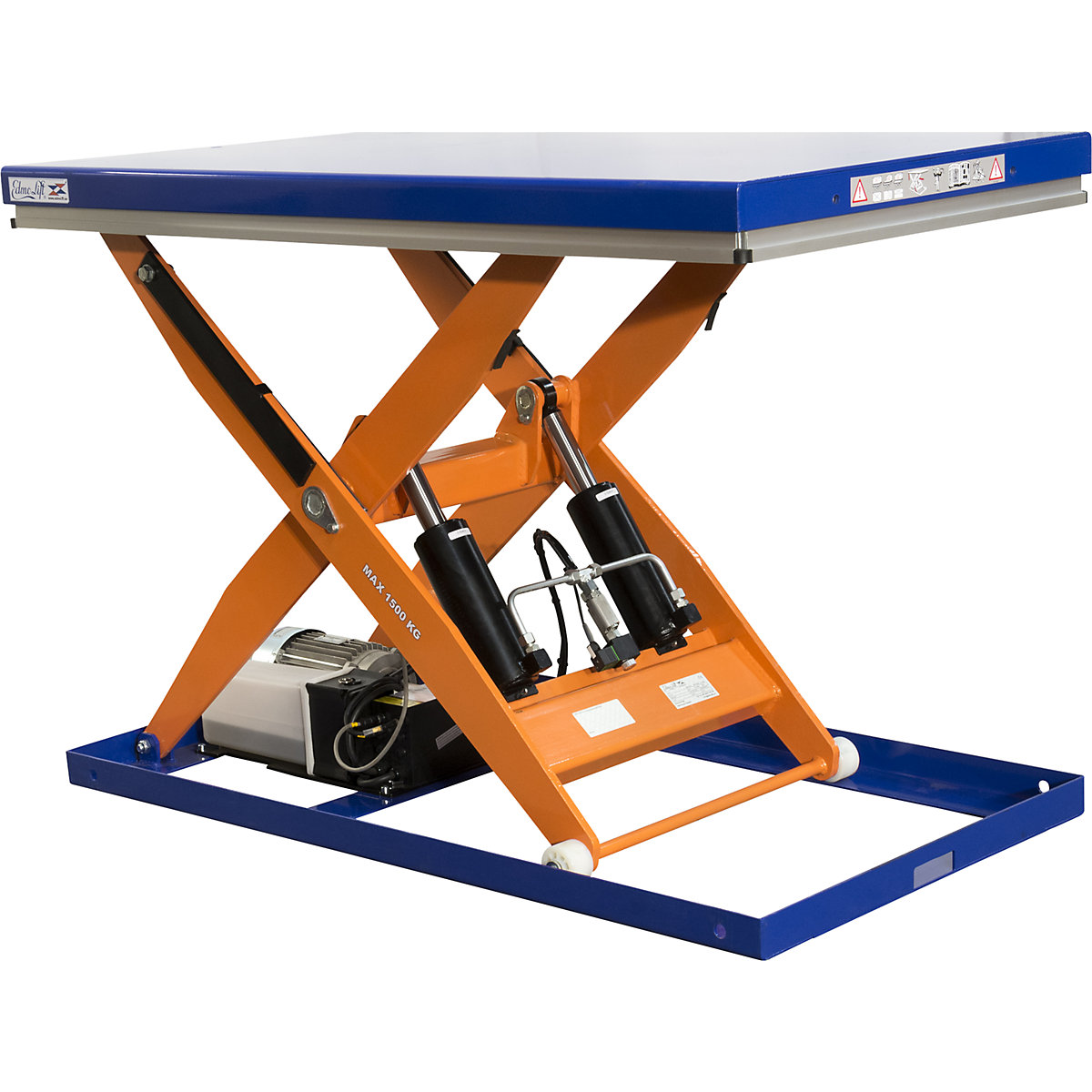

Compact lift table, static – Edmolift max. load 1500 kg

Compact lift table, static – Edmolift
1000 kg model
Compact lift table, static – Edmolift, max. load 1500 kg, platform LxW 1500 x 800 mm, effective height 210 mm-0
Compact lift table, static – Edmolift (Product illustration 2)-1
Compact lift table, static – Edmolift (Product illustration 3)-2
Compact lift table, static – Edmolift (Product illustration 4)-3
Compact lift table, static – Edmolift (Product illustration 5)-4

platform LxW 1500 x 800 mm, effective height 210 mm

€ 5,300.00
Price / item (Excl. VAT)
Delivery time: Over 6 Weeks
Product description
  • Low price due to high volume production
  • Tested and proven for daily, 8 hour operation
  • Sturdy construction
Compact lift tables can be either used free standing or built-in, so that the platform is level with the ground. The table is smoothly and quickly raised to the desired height at the touch of a button. The electro-hydraulic motor is integrated in the device. High quality powder coating, platform and frame in ultramarine blue RAL 5002, scissor mechanism in signal orange RAL 2010.
Operating voltage 400 V. Control voltage 24 V.
230 V model on request.
The static compact lift tables are fitted with safety skirting and electrically controlled safety valves, and are compliant with EN 1570-1 as well as VDE requirements. Operated using a hand switch with 3 m cable and emergency off switch.

Lifting capacity at full load: 3 – 4 cycles per hour in 1 shift operation.
Accessories for static compact lift tables on request.
Technical data
Max. load1500 kg
Lifting range210 – 1210 mm
Platform designclosed
Lifting time17 sec
Power1.5 kW
Operating voltage400 V 3-phase AC
Control voltage24 V
Lift driveelectro-hydraulic
Platform colourultramarine blue RAL 5002
Platform materialsheet metal
Platform finishpowder coated
Scissor mechanism coloursignal orange RAL 2010
Finishpowder coated
Frame colourultramarine blue RAL 5002
Product typecompact lift tables
Lift1000 mm
Lifting capacity at full load in 1 shift operations3 – 4 cycles per hour
Platform length1500 mm
Featurestationary  electro-hydraulic
Suppliedassembled
Platform width800 mm
Weight255 kg
