Ref.: 453670 10

Crane fork effective height adjustable from 1300 – 2000 mm

(1)
Crane fork

max. load 1000 kg

€ 1,425.00
Price / item (Excl. VAT)
Delivery time: 10-15 Working Days
Product description
  • With automatic weight counterbalance for transporting all pallet goods
  • The effective height can be individually adjusted to the transported goods

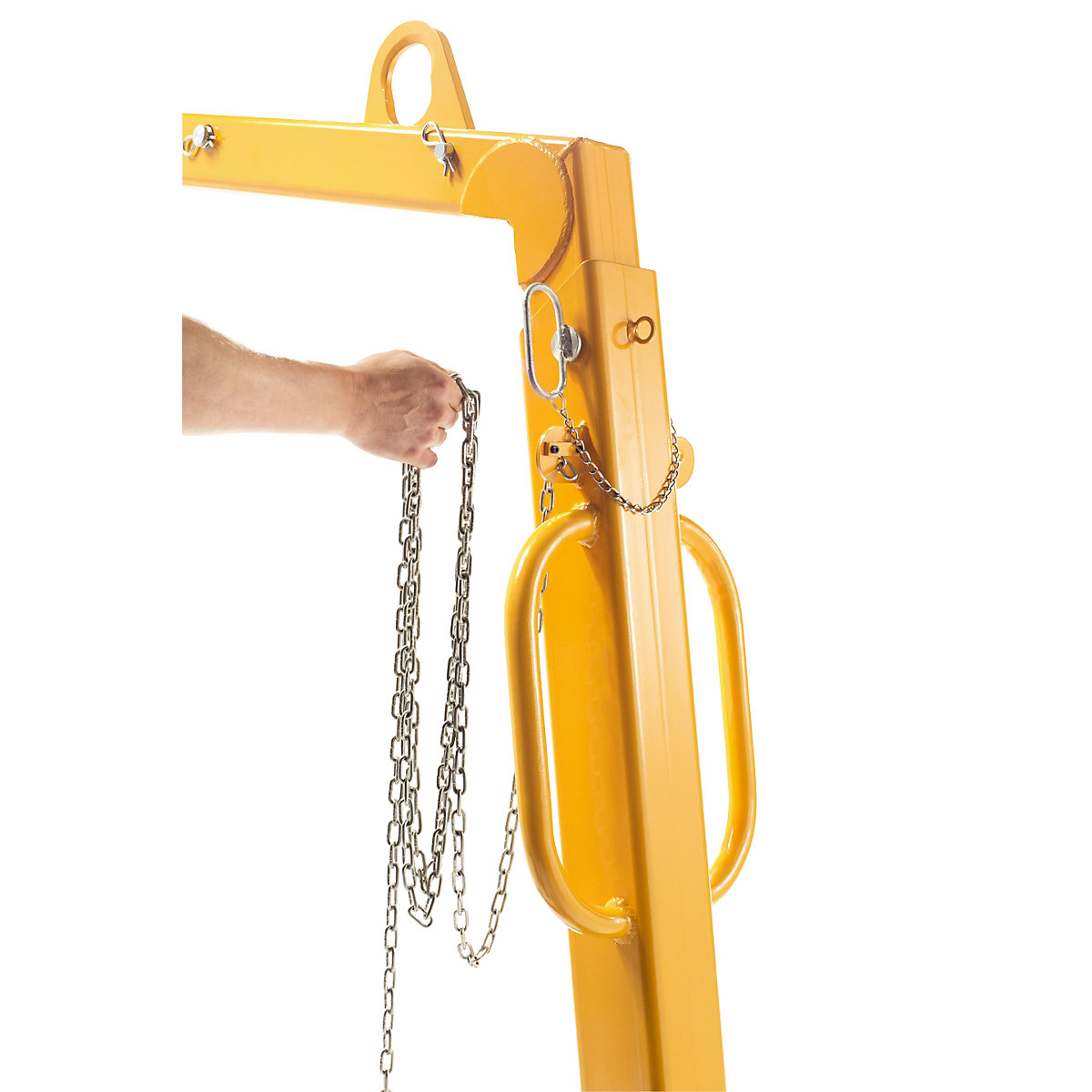

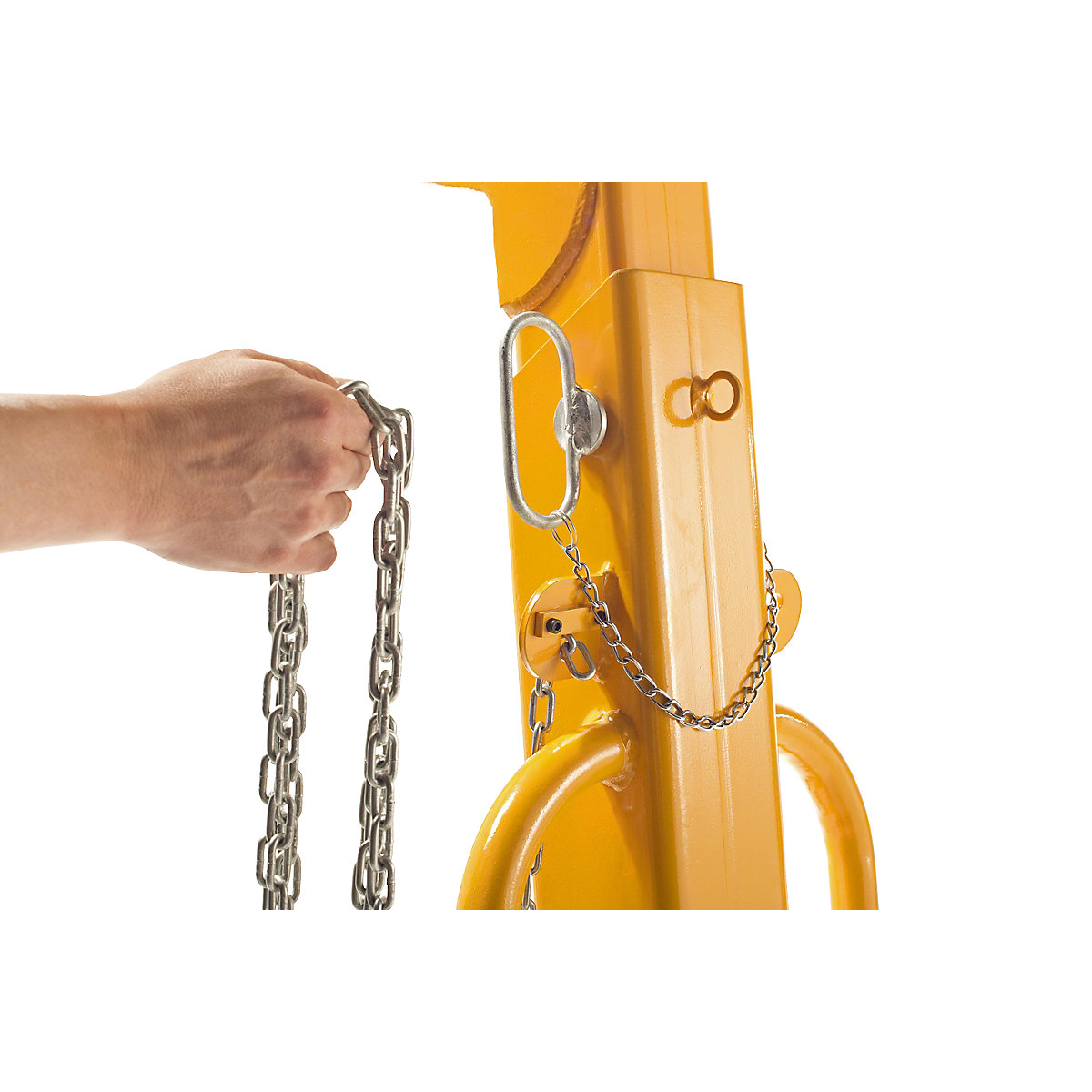

  • Load securing mechanism for attachment included

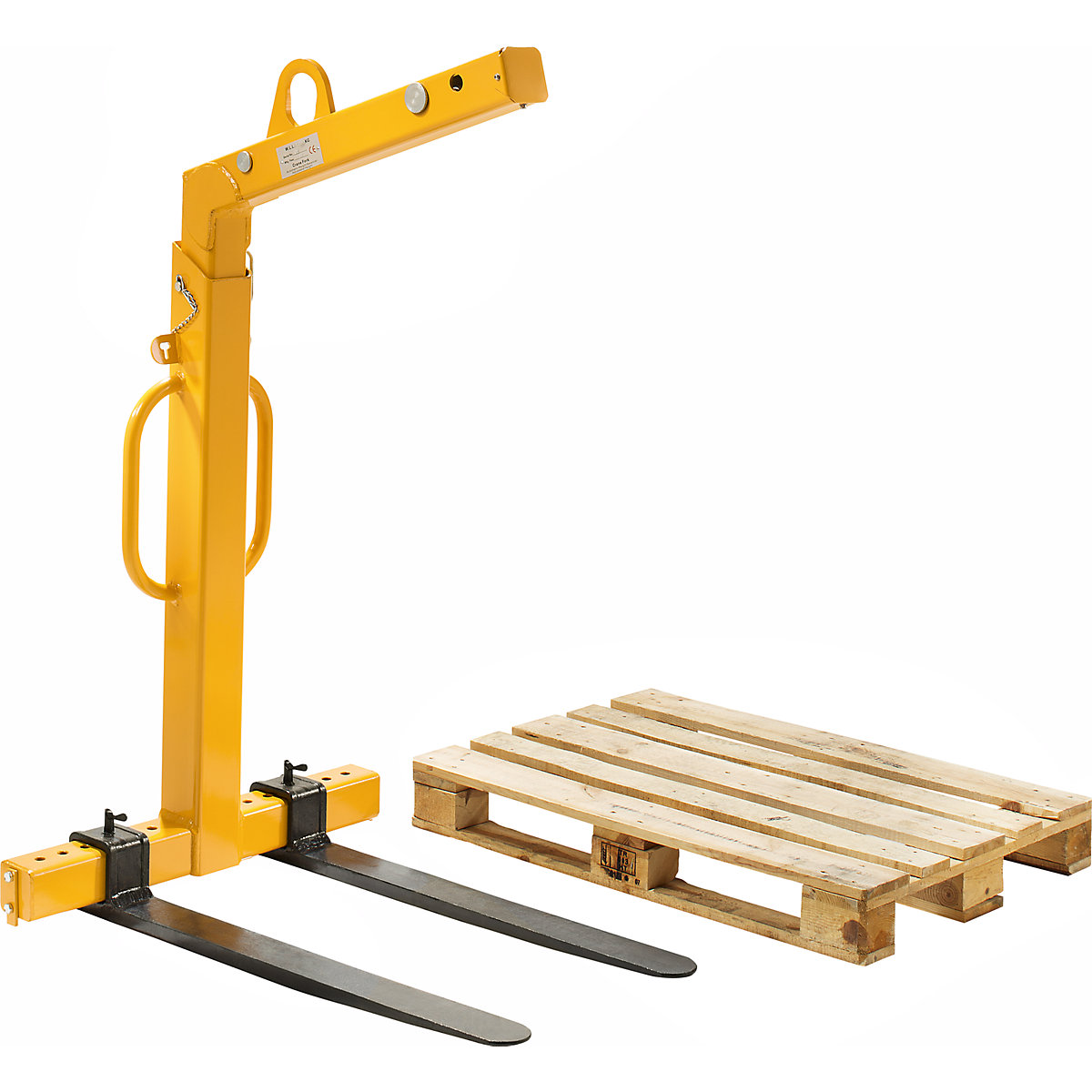

This crane fork is suitable for flexible use on a construction sites, and the automatic weight counterbalance allows even heavy loads to be transported properly and safety. It is fast and easy to fit onto the crane, and can hold Euro pallets either lengthwise or crosswise, the fork is automatically adjusted to the load centre by means of carriage and spring.

Other features:
– Minimum load 20 – 25% of nominal load

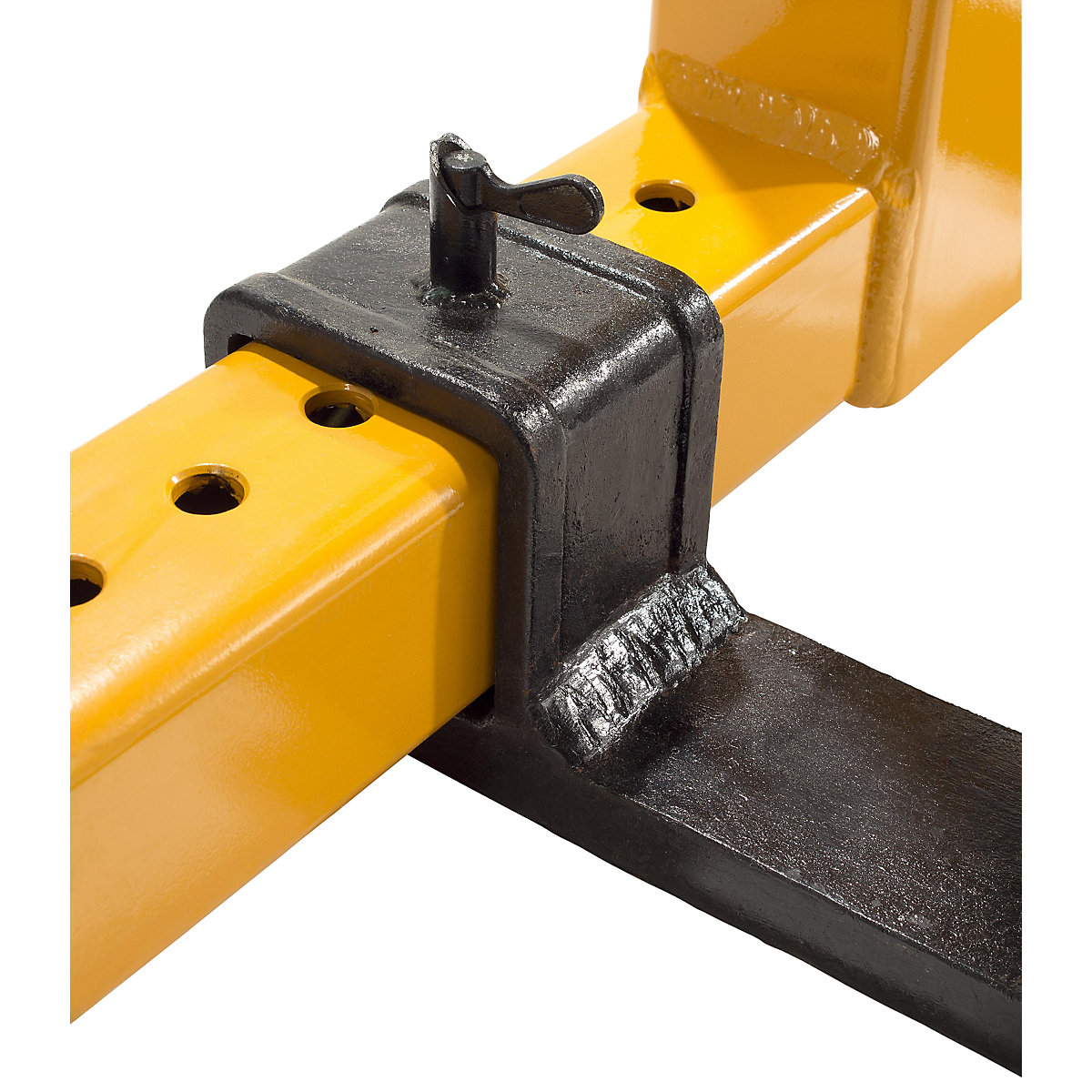

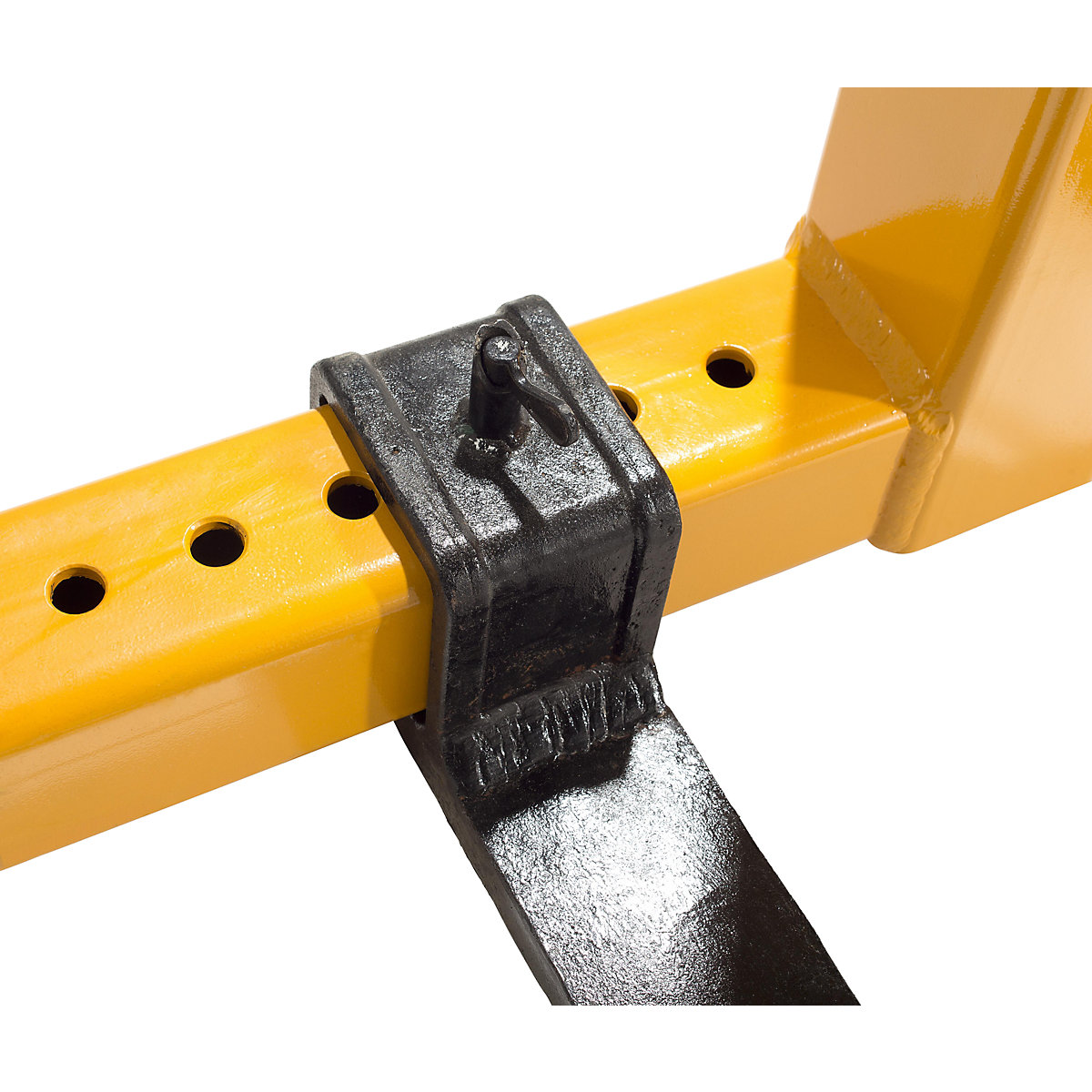

– Forks laterally adjustable
– Steel shot blasted
Alternative models available on request.

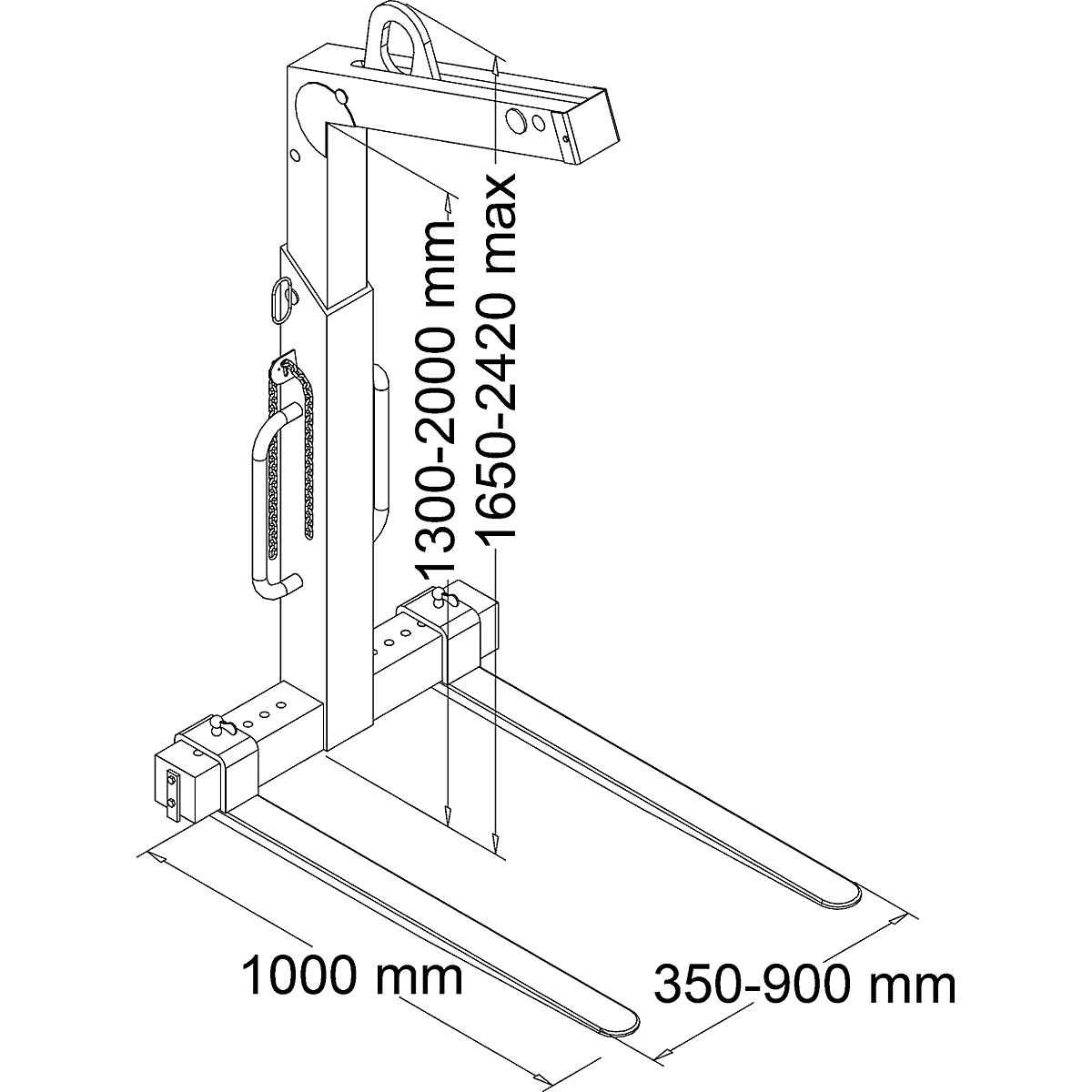

Technical data
Load centre500 mm
Effective height from1300 mm
Fork length1000 mm
Weight compensationautomatic
Materialsteel, painted
Colourmelon yellow RAL 1028
Effective height up to2000 mm
Product typecrane forks
Suppliedassembled
Max. load1000 kg
Fork width100 mm
Thickness of fork prong30 mm
Overall height from – to1650 – 2350 mm
Fork adjustment range350 – 900 mm
Weight140 kg
Pictorial instructions
‌
‌
‌
‌
‌
