Ref.: 157058 10

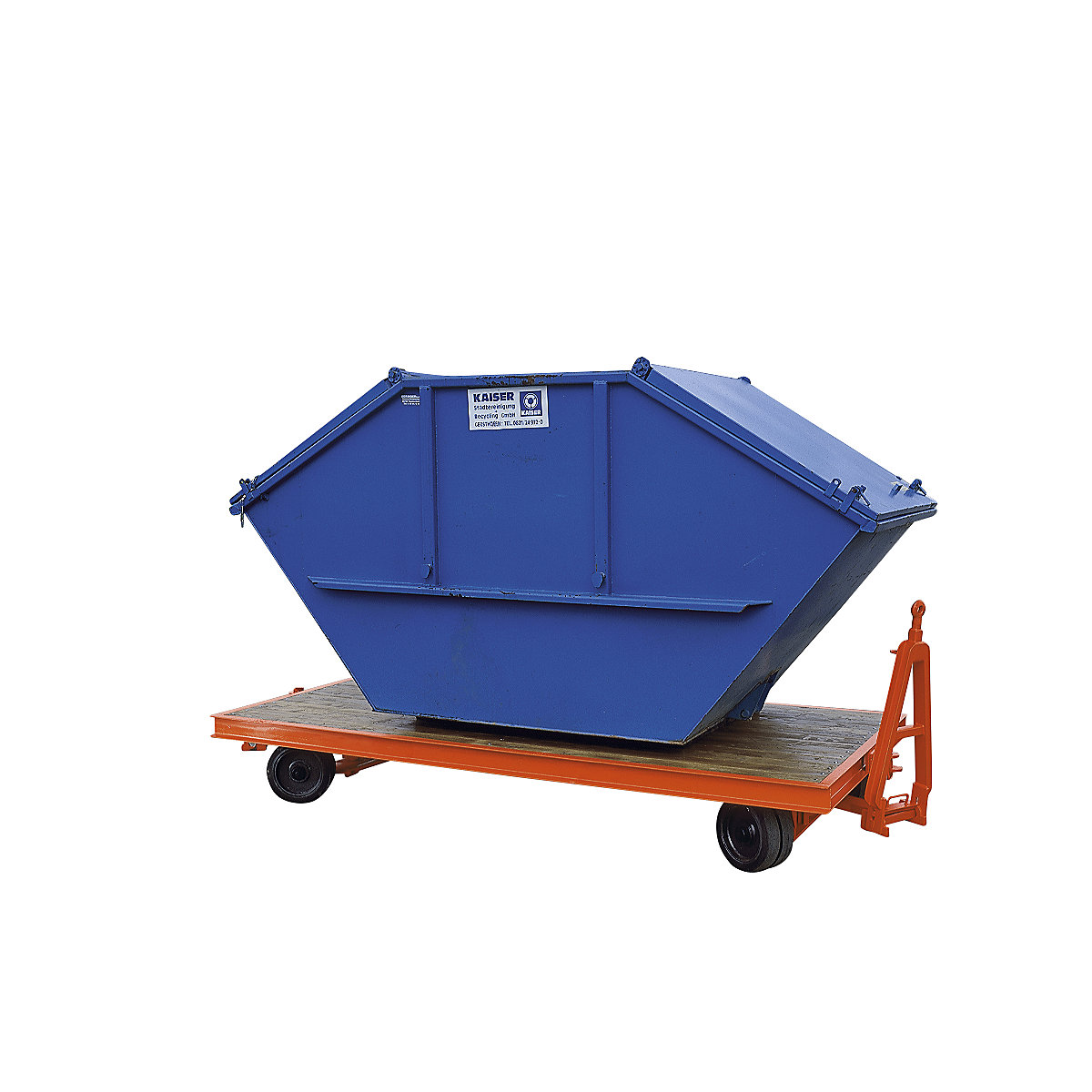

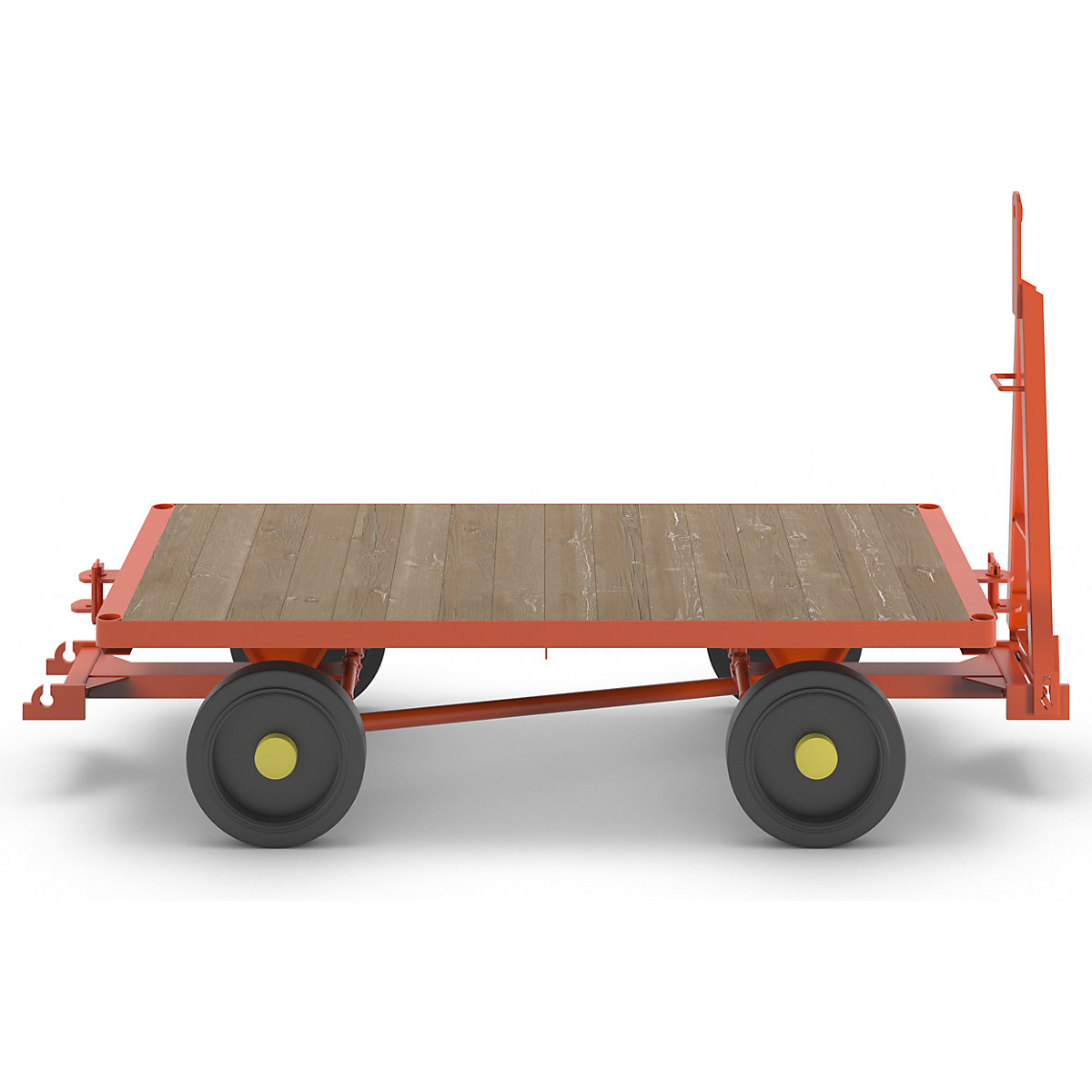

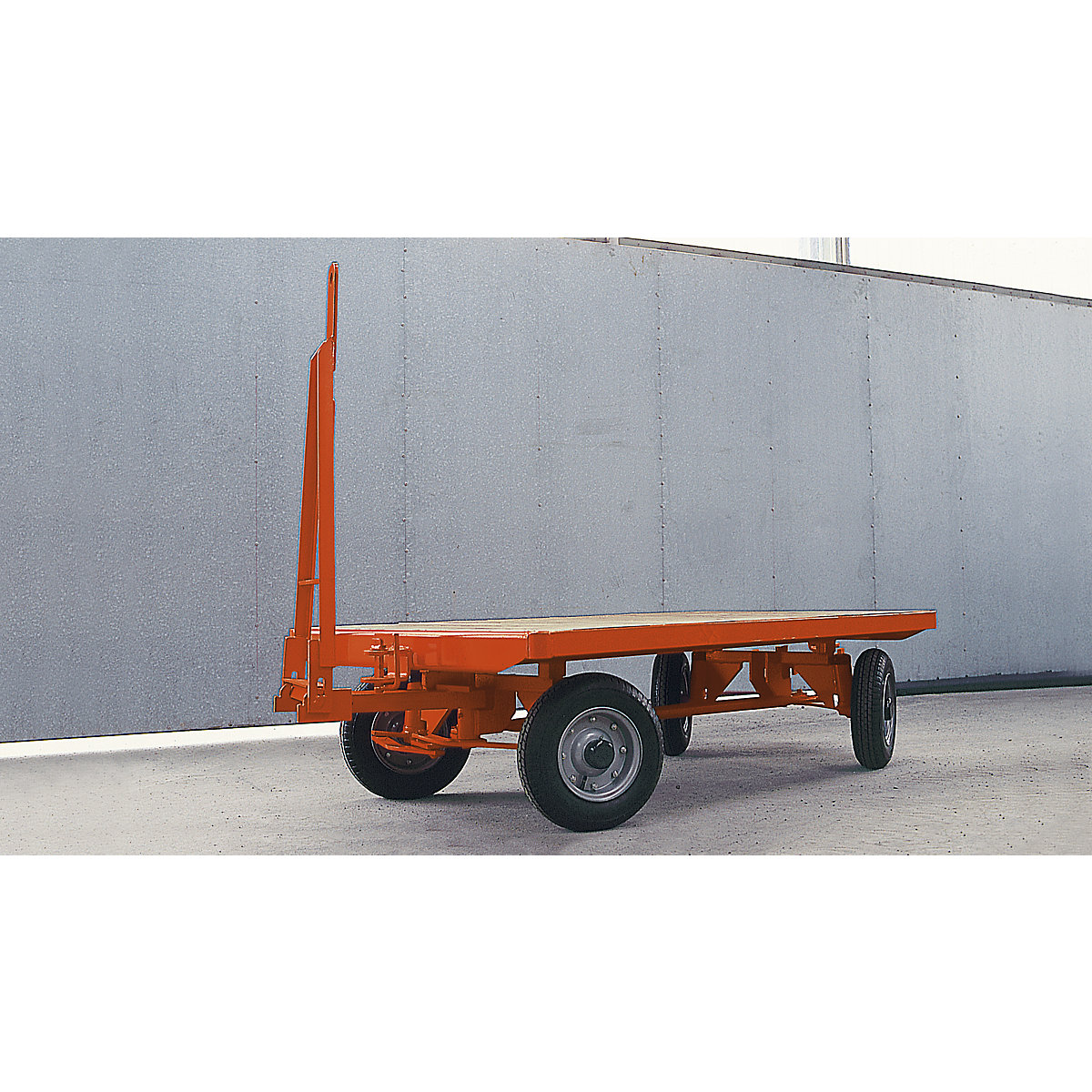

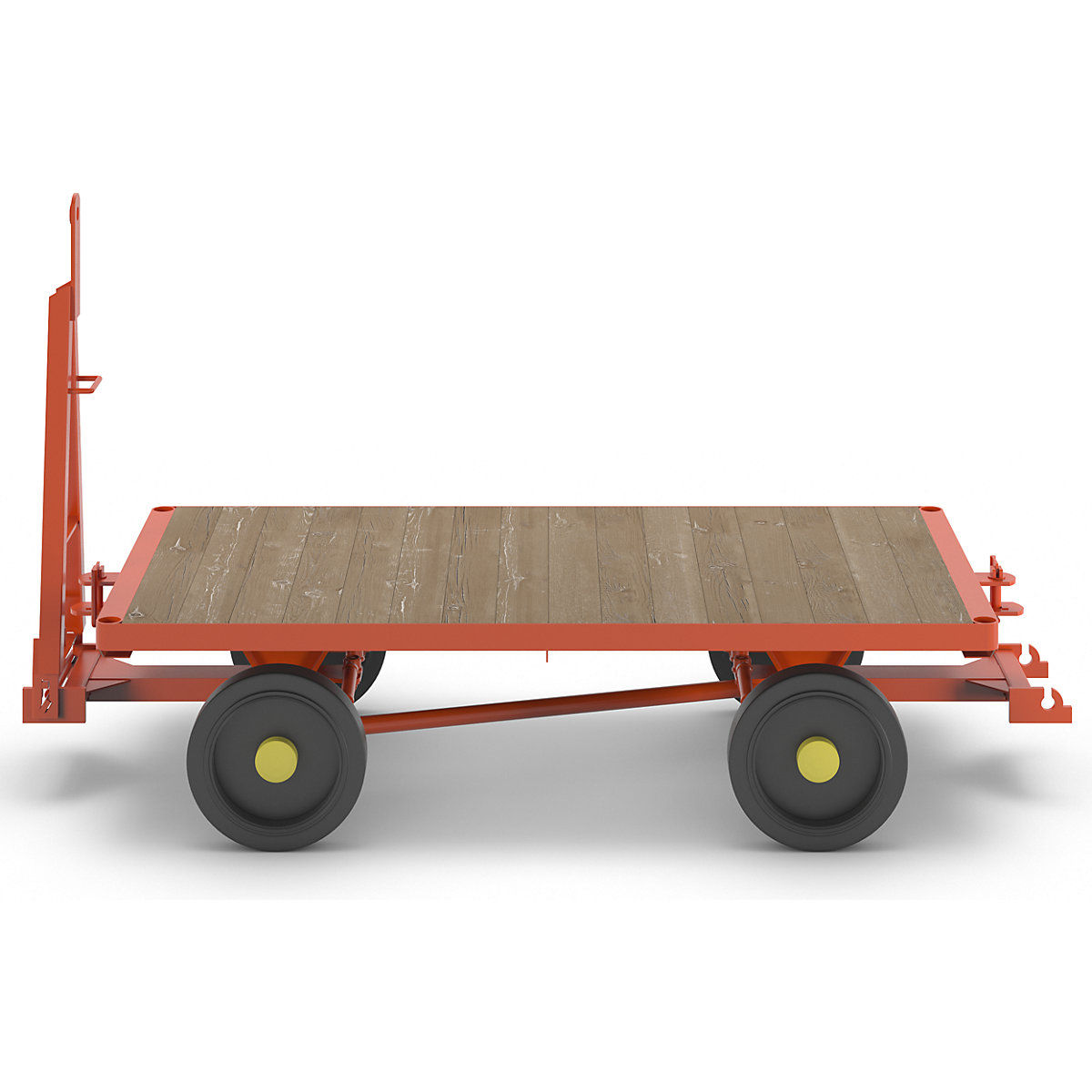

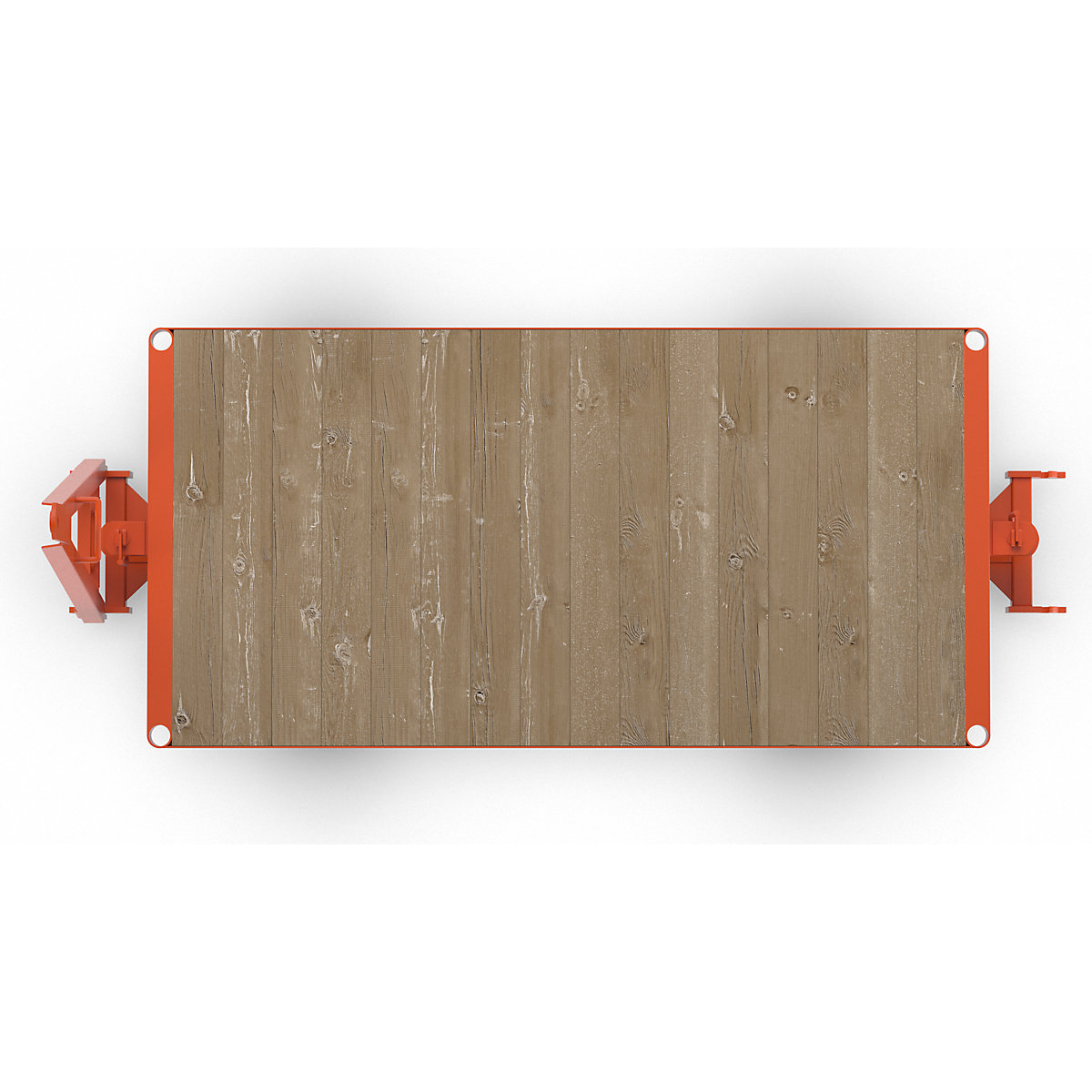

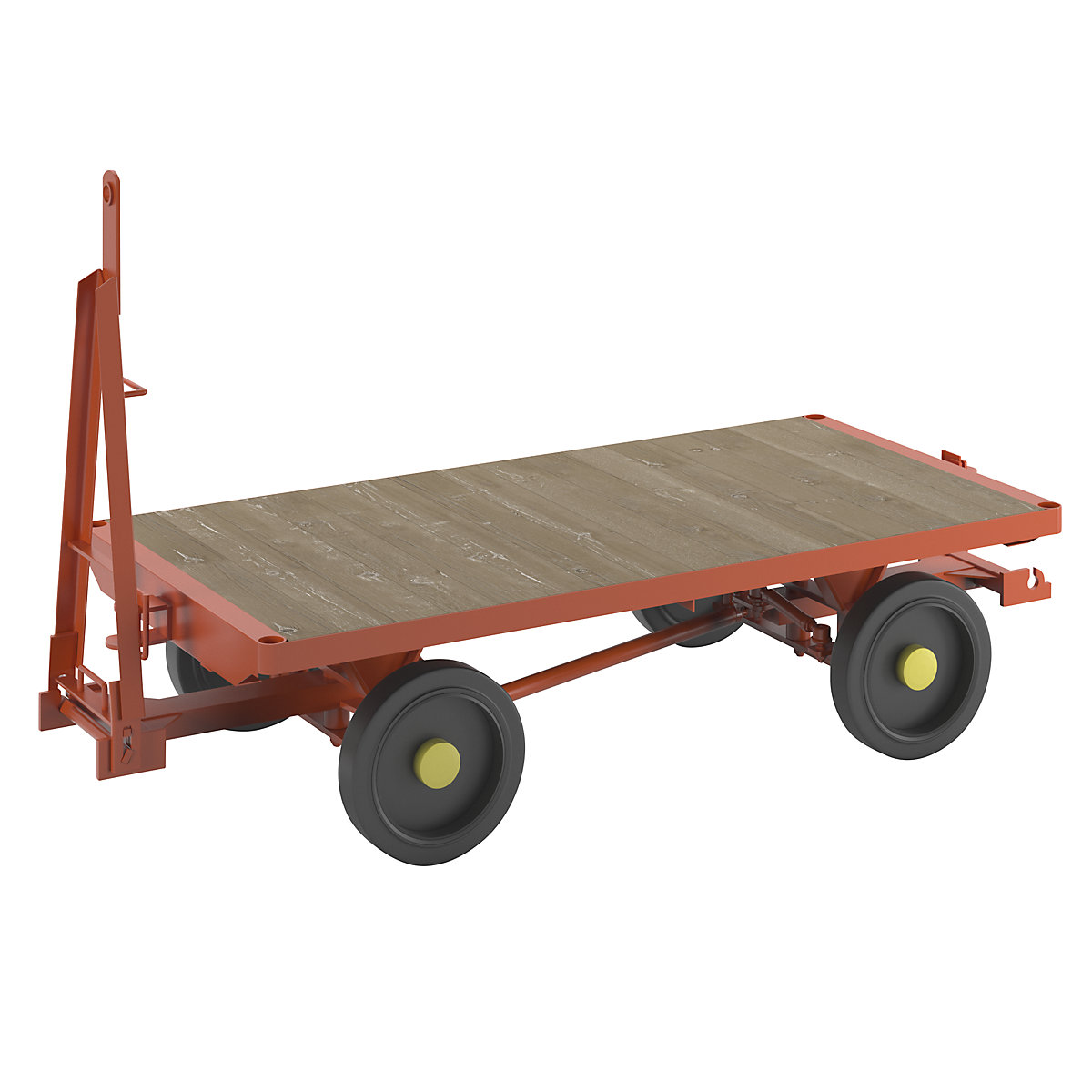

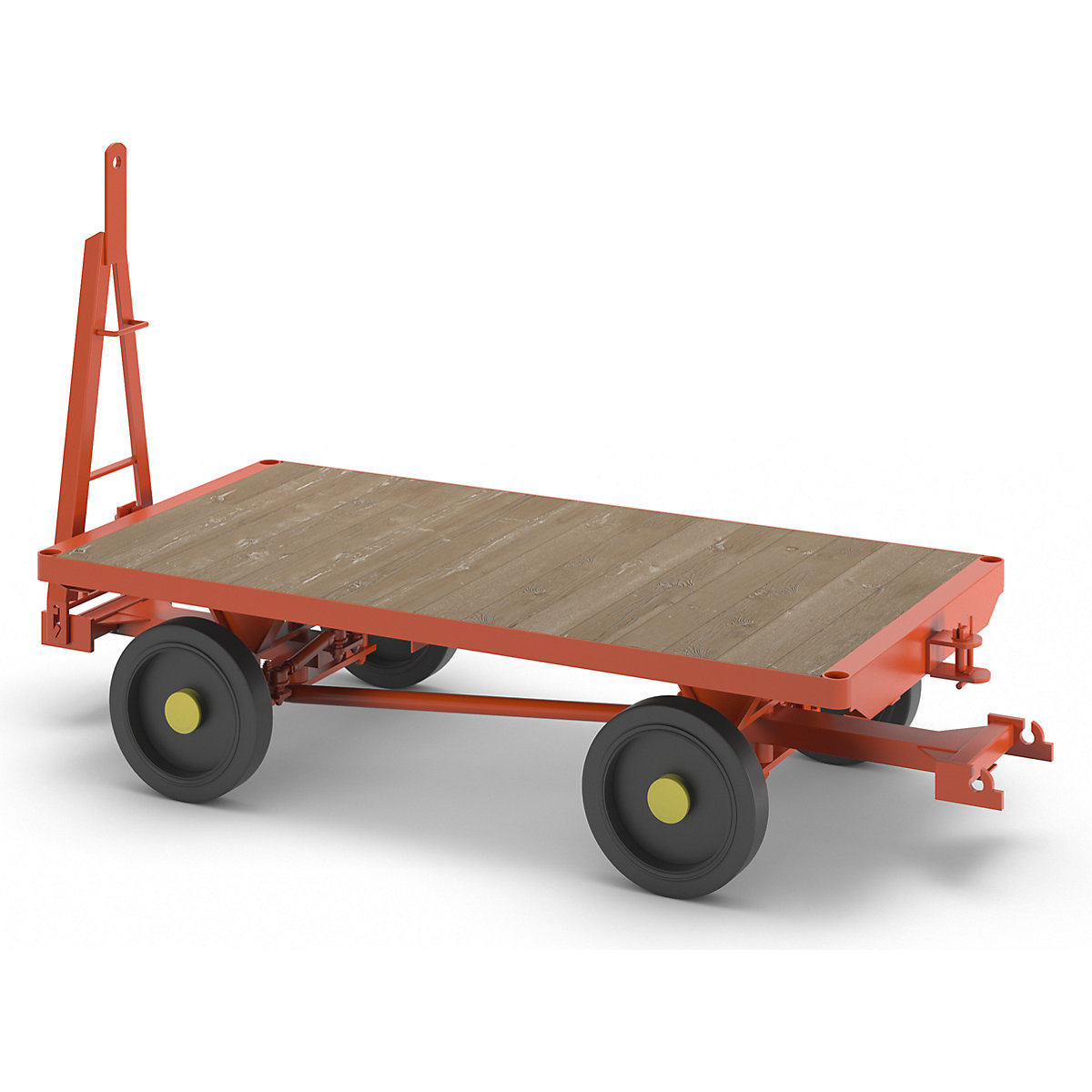

Trailer 4-wheel linked ackerman steering, max. load 2 t

Trailer

platform 2.0 x 1.0 m, solid rubber tyres

€ 4,150.00
Price / item (Excl. VAT)
Delivery time: Over 6 Weeks
Product description
  • Small turning circle – steering radius 40°
  • Impregnated wooden platform for weather resistant and non-destructive load support
  • Detachable drawbar, trailer coupling on both sides
  • Robust welded steel construction
  • Low maintenance
  • Precision tracking stability
  • Durable

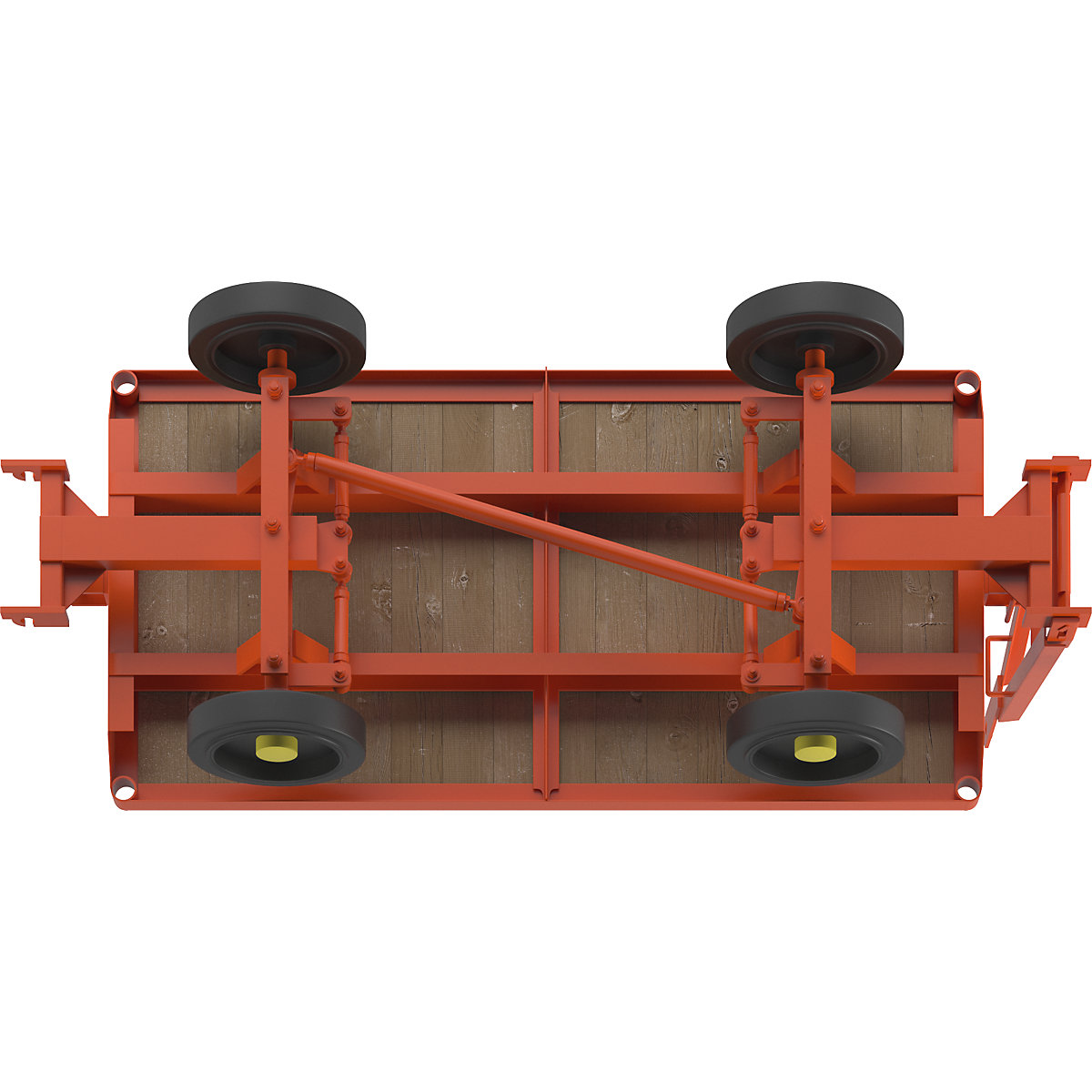

  • Track rods and steering rods with maintenance free ball heads
  • In line with workplace safety regulations for transport vehicles
Chassis
Frame construction with rounded corners. Pipe corners for attaching posts or side panels, or as tie-down eyes. Pine laminate, hard-wearing varnish. Trailer coupling.
Wheel type
Solid rubber or pneumatic tyres. Hubs with double ball bearings.
Paintwork
Pure orange RAL 2004.

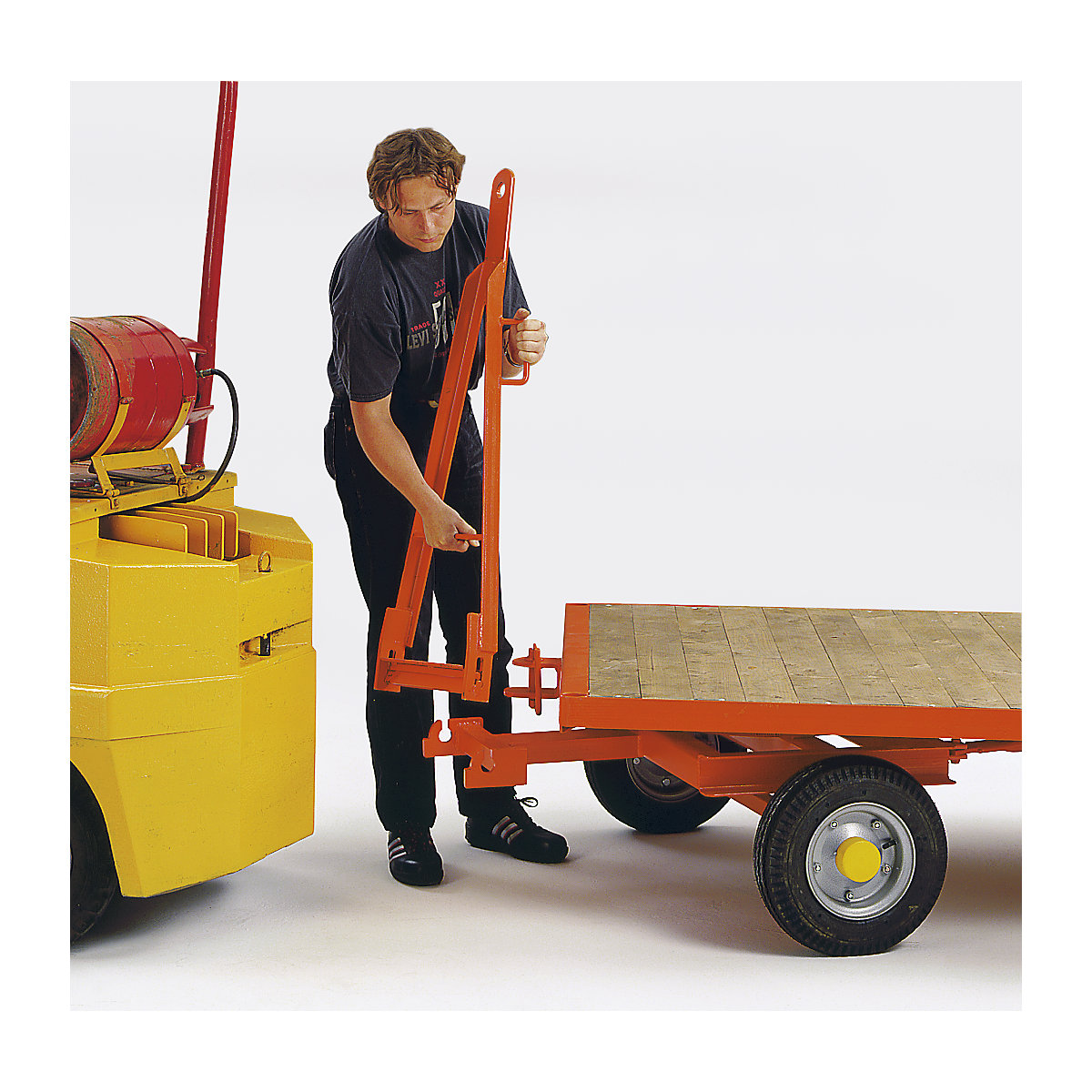

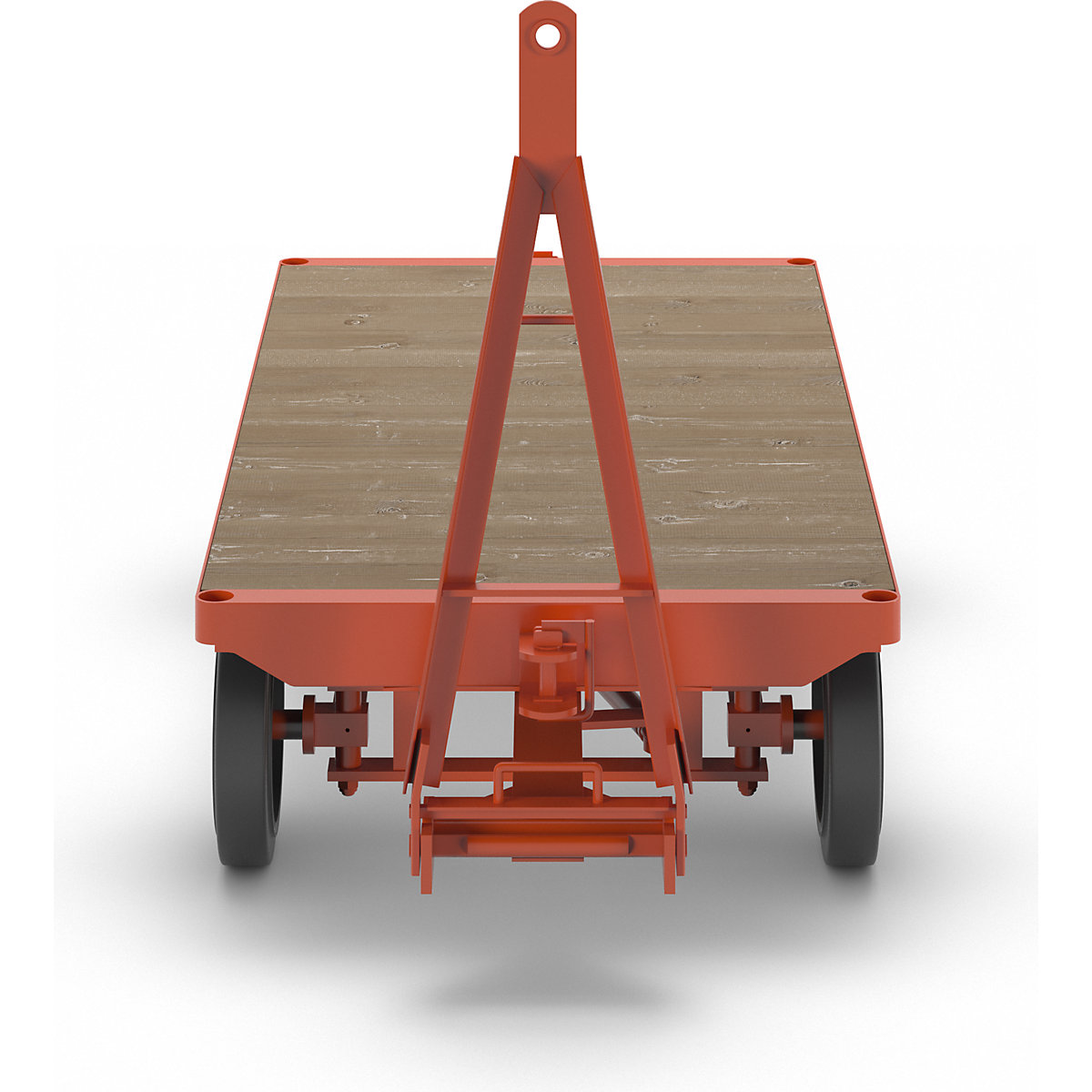

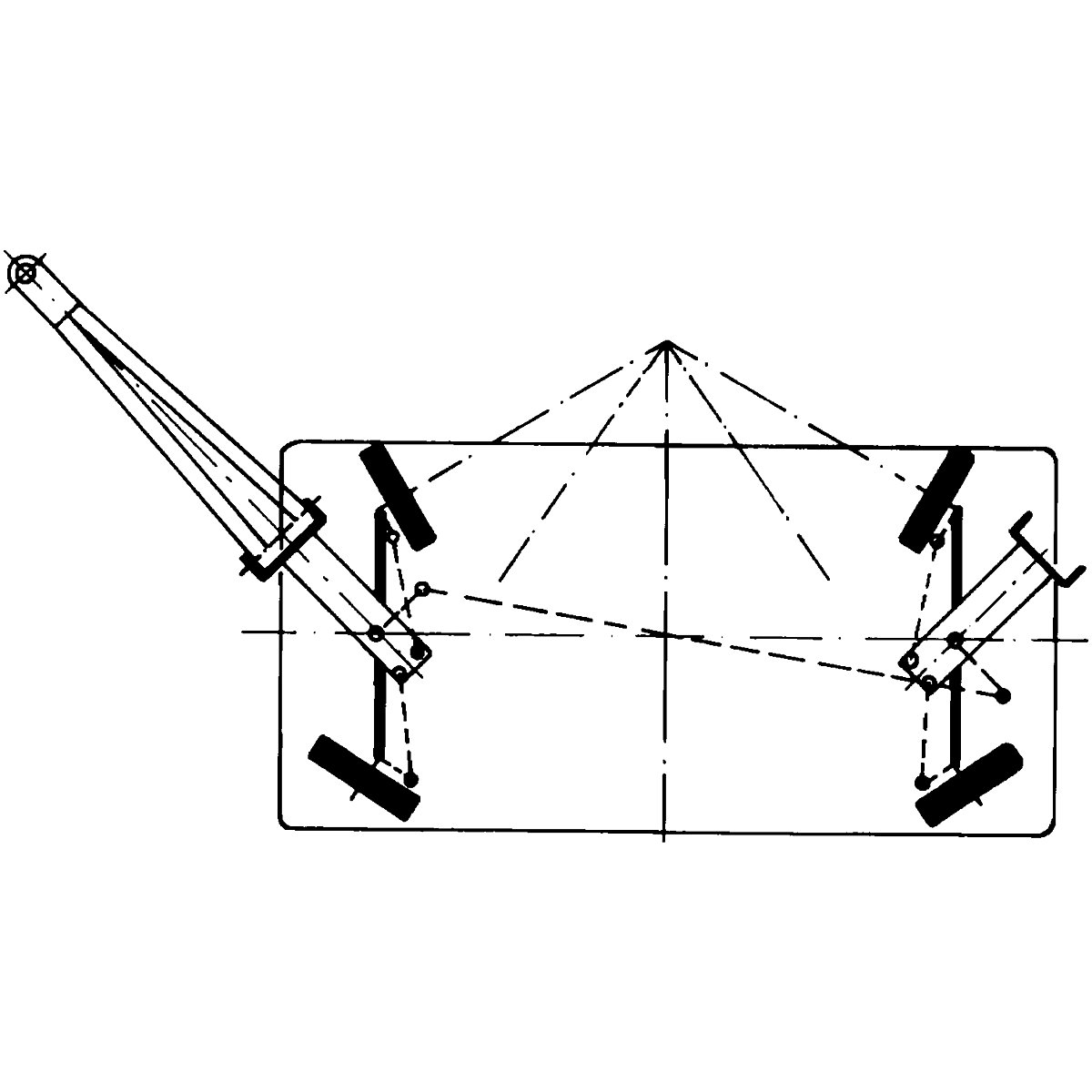

All-wheel Ackerman steering, tracking stability. Triangle drawbar, height adjustable with fall arrest.
On request

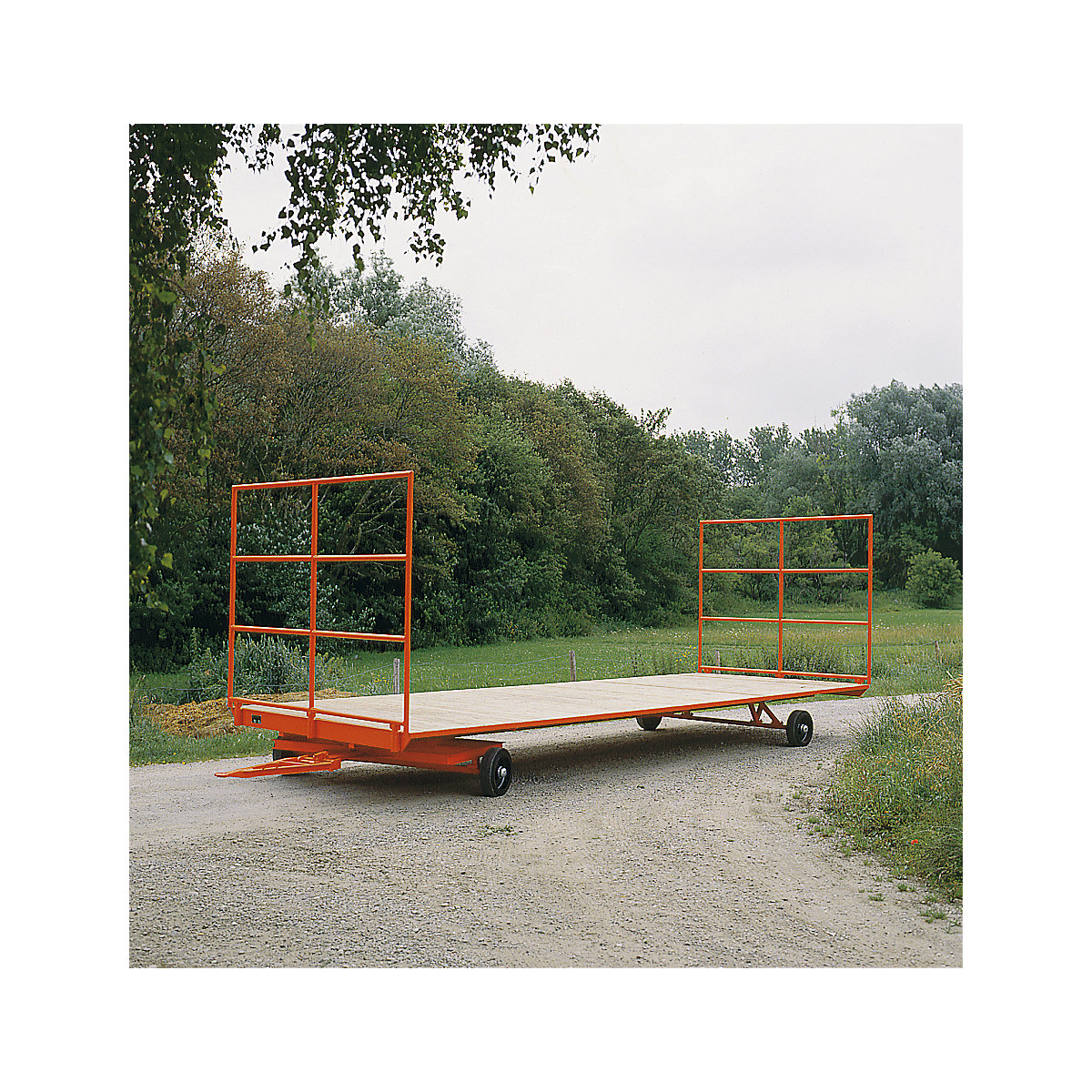

Parking brake, rubber axle and lead spring, CSE tyres, side walls, weather protection structure, lighting, sheet metal covering, stanchions, compressed air brake, mesh panel, mesh construction and folding aluminium side panels, folding loading ramps, electric brake, special paint finish, support feet, long material trailer, long material trailer with adjustable rear vehicle, special trailer with overrun brake, drawbar height adjustment mechanism, cropped drawbar, fixed bogie, dual action wheel chock with chain and bracket, cranked drawbar with drawbar height adjustment mechanism, low loader, low loader with hand crank parking brake, low loader with weather protection structure and other accessories
The technical specifications for these trailers makes it necessary to manufacture them to order.
For this reason, please be aware that there is no right of return for these items.
Technical data
Max. load at 6 km/h2 t
Steering4-wheel axle knuckle
Platform materialwood coating, treated with preservative
Type of tyresingle tyre
Featuredetachable drawbar
Finishpainted
Colourpure orange RAL 2004
Steering radius40 °
Towing eyelet diameter35 mm
Product typeindustrial trailers
Suppliedassembled
Platform length2000 mm
Platform width1000 mm
Loading height510 mm
Wheel typesolid rubber
Wheel width75 mm
Wheel diameter400 mm
Weight280 kg
‌
‌
‌
‌
