Ref.: 707731 10

Crash protection bar, steel, Ø 76 mm for outdoor use

Crash protection bar, steel, Ø 76 mm
Crash protection bar, steel, Ø 76 mm, for outdoor use, HxW 390 x 750 mm-0

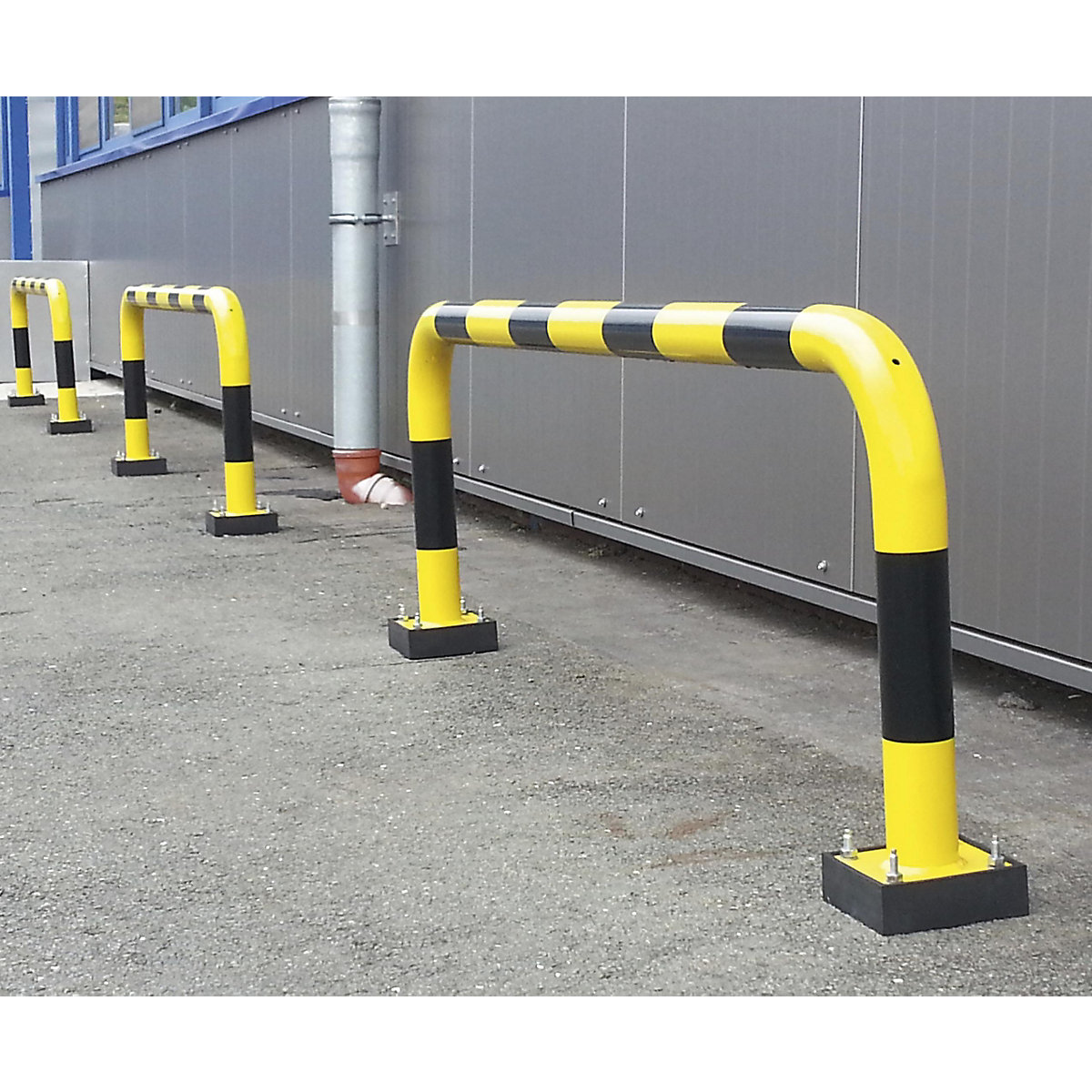

Crash protection bar, steel, Ø 76 mm (Product illustration 2)-1
Crash protection bar, steel, Ø 76 mm (Product illustration 3)-2
Crash protection bar, steel, Ø 76 mm (Product illustration 4)-3

HxW 390 x 750 mm

€ 449.00
Price / item (Excl. VAT)
Delivery time: 10-15 Working Days
Product description
  • For outdoor use
  • Non-marking due to energy absorbing spring element
  • Reduction in repair costs as plugs can no longer be yanked out
  • Flexible spring element minimises collision damage – inclines upon impact by up to max. 10°
  • Can be retrofitted to crash protection bars that are already installed
  • TÜV tested in accordance with DGUV 108-007 and patented
  • Large range of different heights and widths
High quality steel. Bar Ø 76 mm, wall thickness 3.0 mm. Evenly bent, no welded joints.
Spring components made of UV resistant polyurethane enable tilting up to 10°.
For bolting in place, base plates 160 x 140 mm.

Hot dip galvanised and additionally plastic coated in yellow with black stripes.
The mounting material can be found under Accessories.
Supplied without fixing material.
Technical data
Base plate length160 mm
Base plate width140 mm
Modelversatile
Materialsteel
Finishhot dip galvanised and plastic coated
Type of mountingwith base plate for bolting in place
Tube diameter76 mm
Colourtraffic yellow RAL 1023  jet black RAL 9005
Panel thickness3 mm
Slope10°
Place of useoutdoor use
Product typebarrier rails made of steel
Suppliedassembled
Height390 mm
Width750 mm
Height above ground390 mm
Weight9 kg
‌
‌
‌
‌
